PESO: Slide Guards

| |
Oregon OSHA

Summary Statement

Brief description of the use of slide guards and their placement on roofs to prevent falls. Part of a collection. Click on the 'collection' button to access the other items.

Slope: 3:12 to 6:12
Slope: 3:12 to 6:12 Roof Height: 25’ maximum One Slide Guard Row

Slope: 6:12 + to 8:12
Slope: 6:12 + to 8:12 Roof Height: 25’ maximum Several Slide Guard Rows

Slope: 8:12 +
Slope: 8:12 + Roof Height: 25’ + Slide Guards CAN’T BE USED for Fall Protection

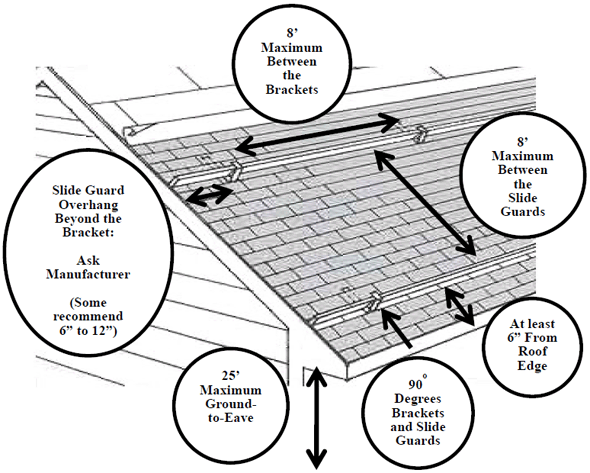

Roof guard diagram
