Machine Guarding

| |
Doug McVittie

Summary Statement

Presentation on basic machine guarding including associated hazards.

Pre-Industrial revolution

  • Waterwheel was source of injuries
  • Injuries taken as matter of course since infrequent
  • Regarded as victim’s own fault

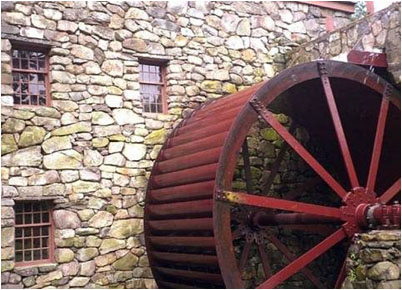

Waterwheel

Industrial Revolution

  • Steam engine and electric motors invented
  • Increased use of power driven machinery
  • Workers caught by projecting set screws on line shafting
  • Crushed flat by belts and pulleys
  • Chewed inch by inch in gears and screw conveyors

Public Reaction

  • Workers felt unguarded machines partly employers fault
  • Newspapers printed details of gory cases
  • Labor unions fought for guarding of hazardous machinery

unguarded machine

Massachusetts 1877

  • First law requiring guarding of hazardous machinery
  • Outrage over young girls getting fingers cut off or mangled in adjacent gears of textile machines
  • By 1900 most industrialized states had laws requiring machine guarding

Massachusetts Study 1939

  • Studied injuries from 1933-1938
  • Woodworking machines highest source of all machine injuries with 18.5%
  • Saws 53% of those injuries (circular saws #1)

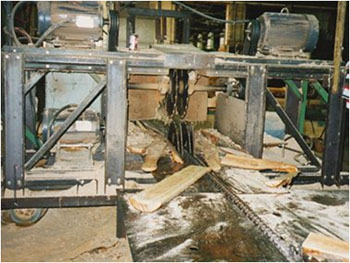

woodcutting machine

1949 Illinois

  • 4,908 injuries due to machines requiring worker compensation in manufacturing or 21.7 % of total
  • Little attention placed on safe placing of machines, emergency stops, and safe arrangement of machine controls

Safety Codes

  • Safety Code for Mechanical Power Transmission Apparatus published in the 1940’s by American Standards Association
  • Very similar to OSHA 1910.219 std.
  • Required forethought guarding vs. afterthought guarding for machine manufacturers

Machine Hazards

  • Motions
    Rotating: in-running nip points, spindles, shaft ends, couplings
    Reciprocating: back-and-forth, up-and-down
    Transverse: movement in a straight, continuous line
Conveyor belt

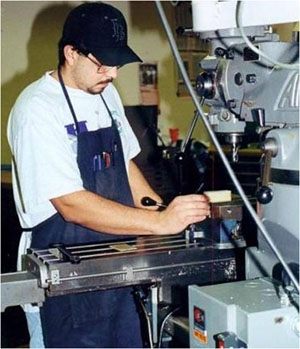

  • Operations
    Cutting: bandsaws, drills, milling machines, lathes
    Punching: punch presses, notchers
    Shearing: mechanical, pneumatic, or hydraulic shears
    Bending: press brakes, tube benders, plate rolls

cutting machine

Principles of Machine Guarding

  • Safe Distance - 7’ rule of belts, etc.
  • Guards - employees can’t get in hazardous area through the use of barriers.
  • Table 0-10 for guard opening design
  • Devices - Presence sensing mats, pullbacks, light curtains, restrains

Table O-10

Distance of opening from the point of operation hazard (in inches) Maximum width of opening (in inches)
1/2 to 1 1/2 ¼
1 1/2 to 2 1/2 3/8
2 1/2 to 3 ½ ½
3 1/2 to 5 ½ 5/8
5 1/2 to 6 ½ ¾
6 1/2 to 7 ½ 7/8
7 1/2 to 12 ½ 1 ¼
12 1/2 to 15 ½ 1 ½
15 1/2 to 17 ½ 1 7/8
17 1/2 to 31 ½ 2 1/8

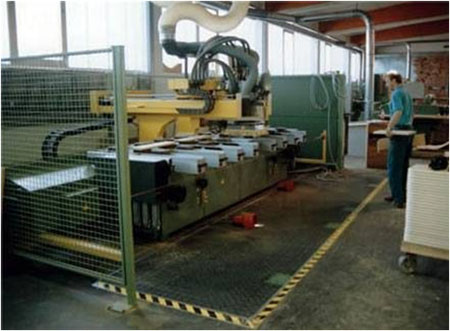

Types of Machine Safeguards

  • Barriers and guards
  • Mechanical or electronic devices that restrict contact, such as presence-sensing, restraining, or tripping devices, two-hand controls, or gates.
  • Feeding and ejection methods that eliminate part handling in the hazard zone.

industrial machine

Definitions

  • Point of Operation - work such as bending, punching, cutting on the material – P.O.O
  • Nip point - location where machine pieces come together such as belts and a pulley, two in-running rollers, etc.

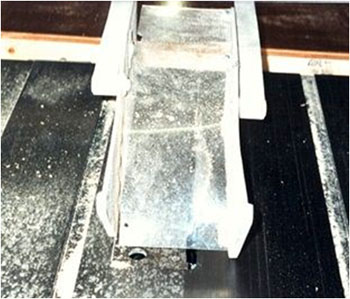

push stick

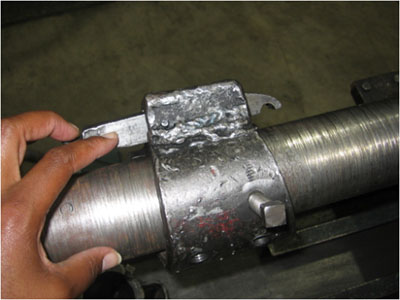

SIGCASE

  • $140,00
  • Unguarded mandrel winder carriage
  • Unguarded rotating shaft amputated worker arm when sleeve caught on a collar bolt

Wire or filament is wound around a rotating mandrel.
Wire or filament is wound around a rotating mandrel.

Guarding Most Cited

  • Unguarded nip points, rotating parts
  • No P.O.O. Guarding
  • Tongue grinder ¼”
  • Work Rest 1/8”
  • Unguarded pulleys
  • Unguarded Vertical Belts
  • Chain and sprocket not guarded
  • Lower blade guard radial arm saw
  • No punch press inspection records
  • Unguarded horizontal belts

Shafts

  • Hazard - caught in
  • Unguarded rotating shafts can easily snagged clothing or hair
  • Fixed Guards used

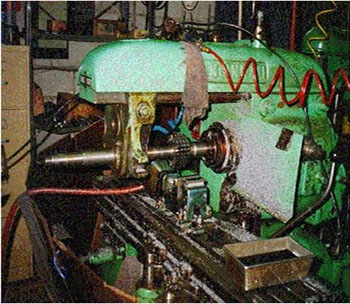

machine with shaft

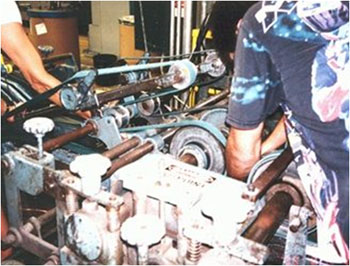

In-running Nip Points

  • Belts and Pulleys
  • Chains and Sprockets
  • Gears
  • In-running rollers
  • Fixed Guards used the most

In-running Nip Points

AMPUTATE LEP

  • CSHO will review OSHA 200 and 300 logs for all amputation injuries or hazards
  • Limited to hazards associated with power presses, press brakes, saws, shears, slitters, and slicers, but may be expanded
  • Inspections began March 26, 2002
  • CPL 2-1.35
  • CSHO will also evaluate employee exposures during the following:

    • Regular operation of machine
    • Setup/threading/preparation for operation of machine
    • Clearing jamups or upset conditions
    • Making adjustments while machine is operating
    • Cleaning of machine
    • Oiling/greasing of machine /machine parts
    • Scheduled/unscheduled maintenance
    • Lockout/tagout considerations

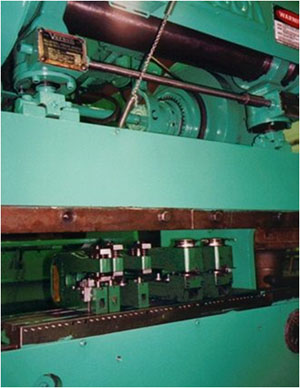

Punch Presses

  • Point of Operation guarding required on front, back, sides
  • Prevent Double trips - double trip took both hands of a worker in 1997
  • Inspection, records, employee training

Industrial machine

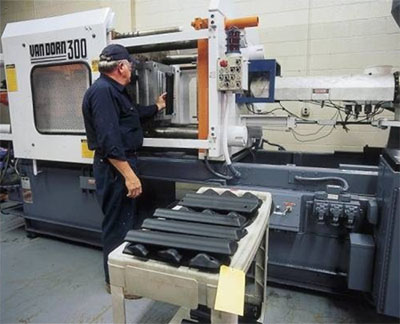

Horizontal Molding Presses

  • Hazard is getting caught in horizontal ram
  • Interlocked doors used
  • Lockout for repairs

industrial

Press Brakes

  • Employee reaches in to get stuck material
  • Pullbacks, light curtains
  • 12 inches safe distance per ANSI
  • Opening too large
  • 1984 - Eight fingers lost on hydraulic brake in IL

industrial machine

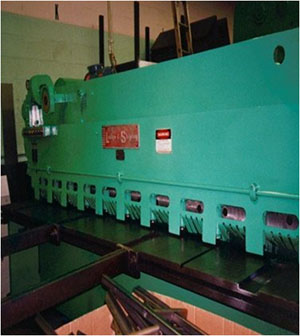

Shears

  • Most come with guards
  • Table O-10 distance must be used
  • Guards bent back on this shear

shears

Slicers

  • Commonly used to slice meat and food
  • Use rotary blade
  • Guillotine cutters used in other industries
  • Most injuries occur in restaurants and grocery stores

meat slicer

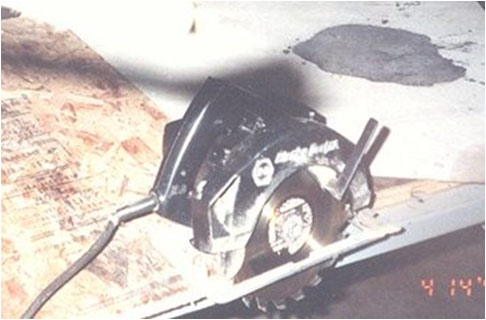

Circular Saws

  • Lower blade guard required
  • Clean saw and blade to prevent guard from sticking
  • Aurora 1998 - 100+ stitches from saw

table saw

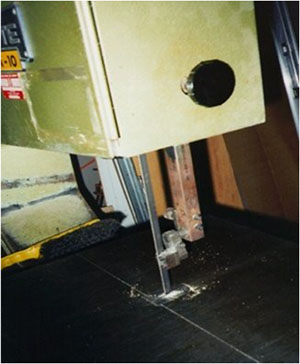

Vertical Bandsaw

  • Adjustable guard to height of product
  • Many injuries by guiding product into POO
  • Handling cold slippery products will increase chances of slipping into POO

bandsaw

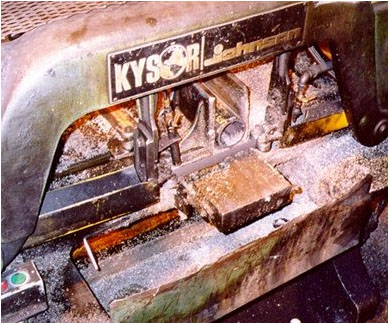

Horizontal Bandsaw

  • Unused portion of blade need to be guarded
  • No oversized blades used

horizontal bandsaw

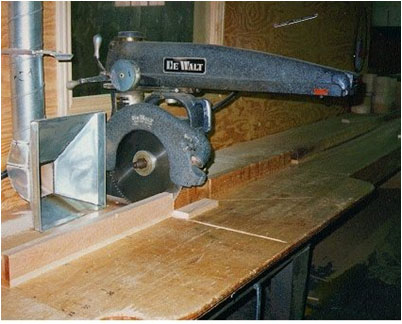

Radial Arm Saw

  • Lower blade awareness device
  • Retracts to original position
  • Does not extend past plane of table
  • Anti-kick back device

radial arm saw

Table Saws

  • Top guard
  • Magnetic restart
  • Spreader
  • Push sticks
  • Anti-kick device

tabel saw

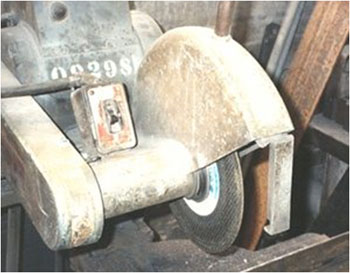

Chop Saw

  • Lower blade awareness device
  • Speed marked on saw
  • Clean saw blades to prevent varnish/sap buildup

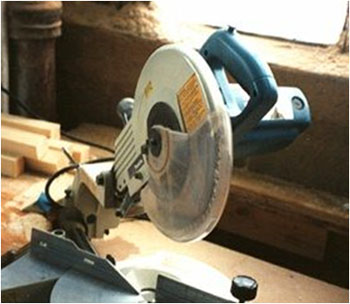

chop saw

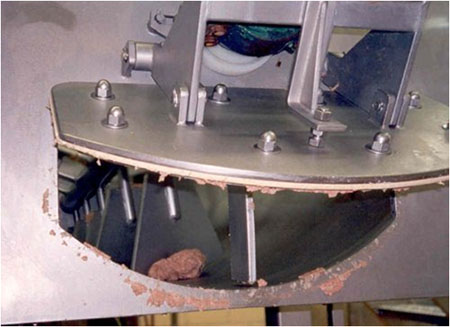

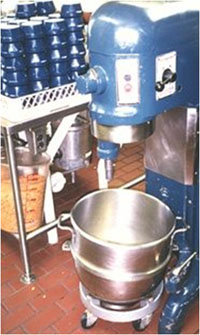

Food Mixers

  • Requires cleaning of food
  • Rotating blades
  • Hand Amputation in 2002

food mixer

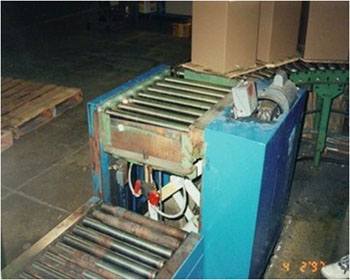

Conveyors

  • Emergency stops placed
  • ANSI B20.1
  • In-running nip points guarded by fixed guards
  • This elevator section unguarded

conveyors

Calendars and Rubber Mills

  • Emergency trips placed so operator breaks emergency stop cable
  • Less than a second to get pulled in

mill

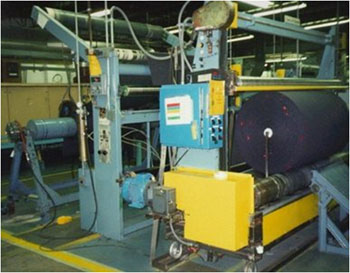

Take-up Coils/Reels

  • Often slow moving
  • Several amputations due getting caught in nip point
  • Interlock guards or barriers used
  • Unguarded fabrictake-up roll nip point

take up coil

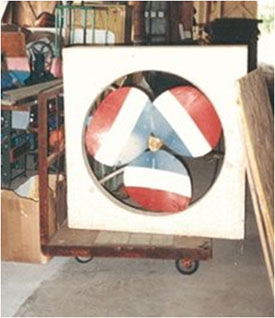

Fans

  • Hazard - rotating blades
  • Use wire mesh guard

fan

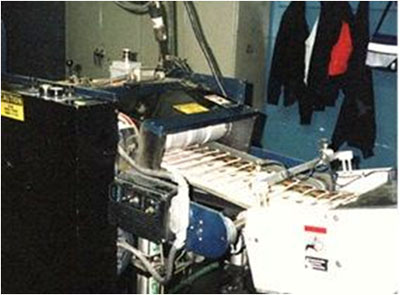

Printing Press

  • Fixed guard prevent entry to moving nip point when cleaning rolls
  • Interlocked Guards for ink addition

printing press

Packaging Machines

  • Multiple pinch points
  • Employee reach in to clear jams
  • Fixed guards or light curtains
  • Lockout is needed
  • 1999 - Aurora amputation

packaging machine

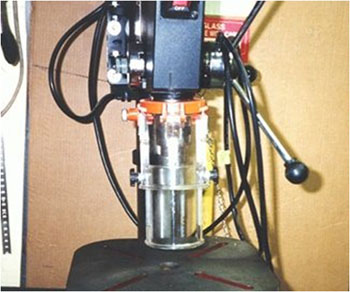

Drill Press

  • Hair or clothing get caught in rotating shaft
  • Automatic ones can guard against pinch point via 1/4 opening or presence sensing devices

drill press

Belt Sanders

  • Hazard is nip point
  • Use fixed guard

belt sander

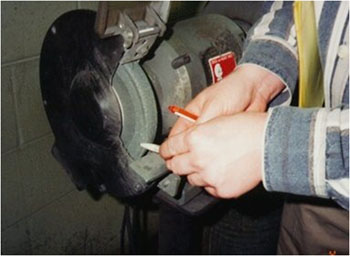

Bench Grinders

  • Tongue Guard - 1/4”
  • Work rest - 1/8”
  • Blotters used
  • Ring test
  • Spindle speed
  • Side nut guarded

bench grinder

Surface Grinder

  • Half moon guard over wheel
  • No feeding by hand
  • Proper wheel speed

surface grinder

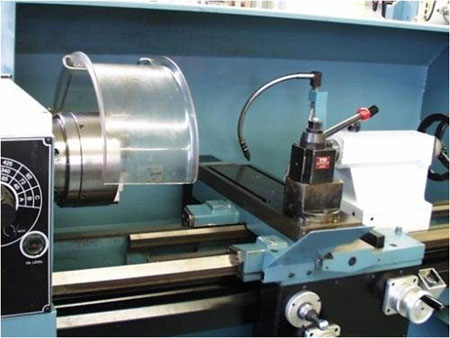

Lathes

  • Eye protection glasses with side-shields.
  • Use Guard over chuck
  • No loose sleeves, long hair, or jewelry
  • Work is securely clamped in the chuck. Start the lathe at low speed and increase the speed gradually.
  • Removing the chuck key immediately after use.

lathe

Mixer/Blenders

  • Fixed guard needed
  • Worker reaches in to clean or clear jam and it restarts
  • Must lockout
  • 1995 - arm amputation was $1M loss

mixer

Auctioned or Used Machines

  • Often missing guards
  • Employer must guard even if not designed with them
  • Consult ANSI standard applicable

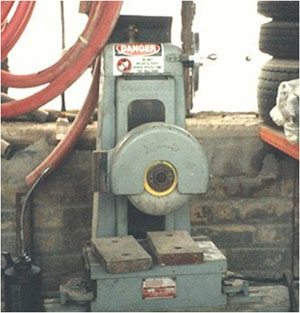

wheel cutter

Training

  • A description and identification of the hazards associated with the machine(s).
  • A description of the safeguards and their functions and use.
  • Instruction on how, and under what circumstances safeguards may be removed, and by whom.
  • Instruction on what to do if a safeguard is missing, damaged, or inadequate

drill press

Summary

  • If a four year could get hurt with a machine, an adult will eventually get hurt too.

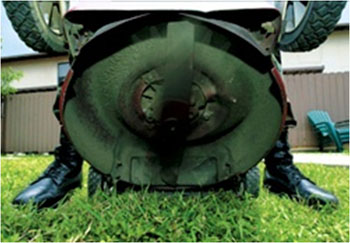

lawn mower

Quiz

  • Tongues on grinders must be adjusted to ___________ inches from the wheel.
  • List the guards required on a table saw. ______________ _____________ ______________
  • If you were working 3 inches from the point operation, the guard opening would be ___________ inches maximum.
  • Belts and pulleys under __________ feet would need guarding.

Resources

Further

  • This was prepared as a collaborative effort of several friends as a preliminary aid for anyone covering basic machine guarding.
  • These are just some of the issues. A comprehensive job hazard analysis should be conducted for any task where someone can get hurt.
  • This is not an official OSHA publication. Those will be on the OSHA.gov website.
