OSHA Fatal Facts: Material Hoist Collapse

| |

Summary Statement

Short OSHA document describes a fatal fall during an attempt to increase the height of a material hoist and lists approaches for prevention.


Incident type: Material hoist collapse
Weather conditions/Time of day: Partly sunny/approx. 1:00 PM
Type of operation: Scaffolding and material hoist erection
Size of work crew: 3
Worksite inspection conducted: Yes
Competent safety monitoring on site: Yes
Safety and Health program in effect: Yes
Training and education for workers: Inadequate
Occupation of deceased worker Carpenter/Erector
Age/Sex of deceased worker 37/M
Time on job: Not Available
Time at task: Approximately 4-5 hours
Time employed/classification (FT/PT/Temporary): Full time
Language spoken: English
Union/Non-Union: Non-Union

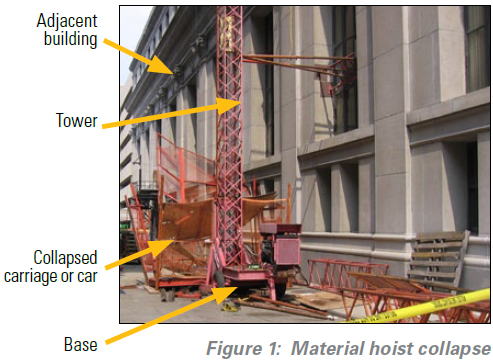

Three workers were adding tower sections to increase the height of a material hoist when it collapsed (see Figure 1). The material hoist was acquired from a rental company’s yard, where it had sat idle for about a year. One of the workers operated the motor for the carriage. Two of the workers gained access to the material hoist to install the tower sections by riding on top of the hoist’s carriage or car. They wore body harnesses and their lanyards were connected to the gin pole1 of the material hoist. When they stopped at the top of the ninth tower section to install an additional section, one of the workers disconnected his lanyard from the gin pole and connected it to a lifeline which was hanging from the roof edge and anchored to a steel beam. The other worker’s lanyard remained connected to the gin pole. They photo of the hoist collapse, elements markedfelt a drop in the carriage assembly, but continued working. The safety chain (see Figure 2) connecting the carriage to the tower broke and the safety brakes (i.e., safeties, “dog brakes”, car arresting device) did not activate to stop the carriage from falling. The carriage fell 90 feet to the ground, the gin pole broke and the worker who had his lanyard connected to the gin pole fell to his death.


Likely Causes of Incident

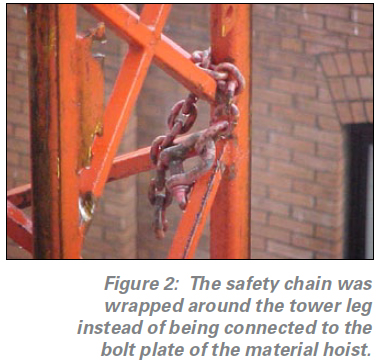

photo of the safety chain in the wrong place- wrapped aroung the tower leg instead of being connected to the bolt plate of the material hoist.
  • Workers were improperly trained on how to erect the material hoist and use fall protection.
  • OSHA’s incident investigation revealed that the material hoist’s safety brake system was improperly installed; therefore, it could not work. It was also not inspected and tested before use, after not being used for about a year.
  • The manufacturer’s recommendations for erecting the tower were not followed:
    • The safety chain was wrapped around the tower leg (see Figure 2) each time the carriage was stopped to place a tower section.
    • In addition, the safety chain was not welded together at the eye bolt connection to the hoist as specified by the manufacturer.
  • Workers were allowed to connect their fall protection systems to the gin pole of the hoist.
  • Workers were permitted to ride on top of the hoist’s carriage.


To prevent similar incidents from occurring employers must:

  • Train workers on the proper procedures for erecting, inspecting, testing and maintaining the material hoist as recommended by the manufacturer (29 CFR 1926.21(b)(2)). Workers must also be trained on how to recognize fall hazards and protect themselves from those hazards (29 CFR 1926.503(a)).
  • Performing regular maintenance, inspection and testing of all functions and safety devices (e.g., safety brake system (29 CFR 1926.552(b)(6)), safety chain, hoist cable) of the hoist, supervised by a competent person, before putting the hoist in service, after major alterations, and at not more than 3-month intervals, will help to ensure that the hoist functions properly.
  • Comply with the manufacturer’s specifications (29 CFR 1926.552(a)(1)). For example:
    • Install the safety chain as specified by the manufacturer.
    • Comply with the welding method required by the manufacturer of the safety chain to ensure that it is correctly attached.

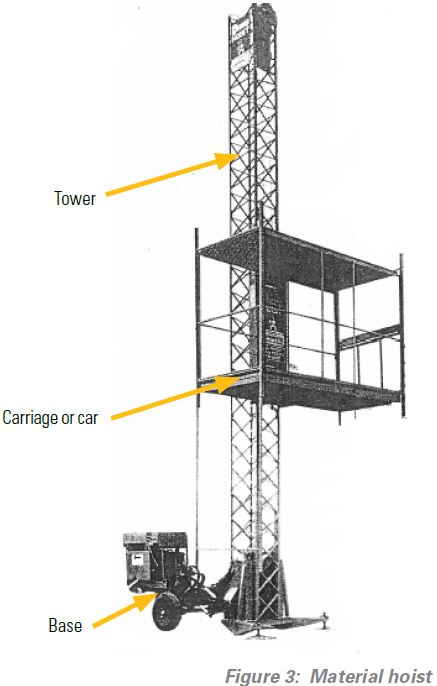

  • Ensure that workers’ personal fall arrest systems (PFASs)2 are not material hoist diagram/descriptionconnected to any part of the material hoist (see Figure 3) when working outside it to install tower sections. Connect workers’ PFASs to an independent anchorage. For example, an adjacent building’s steel beam that is not used to support or suspend the carriage and is capable of supporting at least 5,000 pounds for each worker attached (1926.502(d)(15)). An anchorage designed, installed and used under the supervision of a qualified person and as part of a complete PFAS capable of supporting at least twice the weight expected to be imposed upon it can be used instead. Lifelines must be protected from cuts or abrasions (29 CFR 1926.502(d)(11)) at all times.
  • Prohibit workers from riding on top of a material hoist’s carriage. Also, workers must not ride inside a material hoist’s carriage except during inspection and maintenance activities (29 CFR 1926.552(b)(1)(ii)). However, an OSHA Letter of Interpretation (dated April 7, 1987) states that workers can ride inside a material hoist’s carriage when erecting towers, only if there is no other way to access the material hoist. Otherwise, when adding tower sections, workers should access a material hoist by using the stairways and windows of the adjacent building that the material hoist is anchored to.

You Have a Voice in the Workplace

The Occupational Safety and Health Act of 1970 affords workers the right to a safe workplace (see OSHA’s Worker Rights page, www.osha.gov/workers.html). Workers also have the right to file a complaint with OSHA if they believe that there are either violations of OSHA standards or serious workplace hazards.

How OSHA Can Help

For questions or to get information or advice, to report an emergency, report a fatality or catastrophe, or to file a confidential complaint, contact your nearest OSHA office, visit www.osha.gov or call our toll-free number at 1-800-321-OSHA (6742), TTY 1-877-889-5627. It’s confidential.

More Information

OSHA standards and regulations:

OSHA publications:

OSHA-approved state plans adopt and enforce standards which may differ from Federal regulations: www.osha.gov/dcsp/osp

OSHA’s free On-site Consultation services:

Training resources:

Compliance Assistance services:

List of terms as used in this document

1 A gin pole is a device used to lift tower sections during assembly and disassembly of the material hoist.

2 A PFAS is used to arrest (stop) a worker in a fall from a working level. It consists of an anchorage, connectors, a body harness and may include a lanyard, deceleration device, lifeline or suitable combinations of these.

Note: The described case was selected as being representative of improper work practices which likely contributed to a fatality from an incident. The incident prevention recommendations do not necessarily reflect the outcome of any legal aspects of this case. OSHA encourages your company or organization to duplicate and share this information.

This Fatal Facts is not an OSHA standard or regulation and it creates no new legal obligations. The recommendations contained herein are advisory in nature and are intended to assist employers in providing safe and healthful workplaces. The Occupational Safety and Health Act of 1970 (OSH Act) requires employers to comply with safety and health standards promulgated by OSHA or by an OSHA-approved state plan. The requirements of OSHA-approved state plans can be reviewed by selecting the state’s web site at: www.osha.gov/dcsp/osp. The OSH Act’s General Duty Clause, Section 5(a)(1), requires employers to provide employees with a workplace free from recognized hazards likely to cause death or serious physical harm.
